Pained Or Galvanized Steel Structures Modular Bailey Bridge Corrosion Resistance

MOQ: 1 Pcs
Price: USD 95-450
Standard Packaging: Naked
Delivery Period: 8-10 work days
Payment Method: L/C,D/P,T/T
Supply Capacity: 60000ton/year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Zhonghai Bailey Bridge
Certification
IS09001, CE
Model Number
CB200/CB321
Qualification:
ISO Or Similar
Reusability:
Yes
Surface Finish:
Pained Or Galvanized
Portable:
Yes
Corrosion Resistance:
Yes
Versatile:
Yes
Modular Design:
Yes
Product Capability:
60000 Pieces Per Year
Standard:
ASTM,GB,BS,BV
Grade:
Q355B
Highlight:

modular bailey bridge corrosion resistance

,

pained steel bailey bridge

,

pained modular bailey bridge

Product Description

Special Aspects Of Steel Bridge Structures/bailey Bridge


The Bailey Bridge is lightweight, modular, and easy to assemble, making it ideal for rapid deployment. Its durable steel construction supports heavy loads and withstands harsh conditions, while its adaptability allows for customization to meet specific project requirements. A reliable solution for urgent infrastructure needs.




Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity

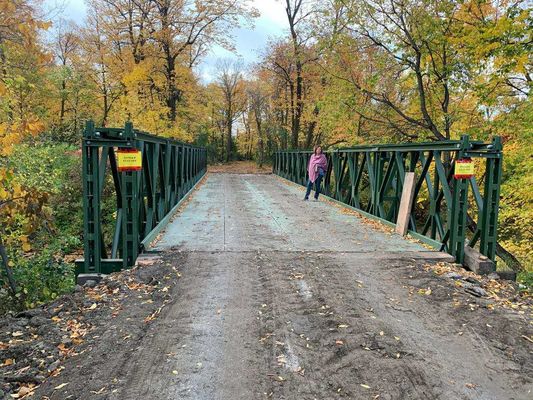

Pained Or Galvanized Steel Structures Modular Bailey Bridge Corrosion Resistance 12
