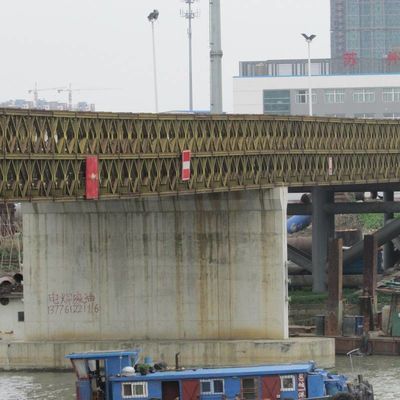

High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel

MOQ:	1 Pcs
Price:	USD 95-450
Standard Packaging:	Naked
Delivery Period:	8-10 work days
Payment Method:	L/C,D/P,T/T
Supply Capacity:	60000ton/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Zhonghai Bailey Bridge

Certification

IS09001, CE

Model Number

CB200/CB321

Qualification:

ISO Or Similar

Surface:

Galvanized

Secondary Steel:

GB Q235

Net Width:

Double Lane 7.35m

Weather Resistance:

Suitable For All Weather Conditions

Cost-effective:

Lower Cost Compared To Traditional Bridges

Material:

Steel

Product Capability:

60000 Pieces Per Year

Standard:

ASTM,GB,BS,BV

Grade:

Q355B

Highlight:

bailey truss gb

high strength steel structure bridge

steel bailey truss

Product Description

High Strength Steel Structure Bridge/sell Bailey Truss

Jiangsu Zhonghai Bridge Equipment Co., Ltd. has fully embraced advanced automatic welding technology to enhance its production capabilities. By introducing automatic welding robots, the company has achieved welding precision within 0.3 millimeters, significantly improving product quality and consistency. This technology not only ensures precise and error-free connections but also boosts production efficiency by completing large volumes of welding tasks in a shorter time. The adoption of automatic welding has been a major breakthrough in modern engineering practices, helping the company meet international standards and expand its market globally.

Specifications:

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
