Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design

Products

Panel Bridge

admin@zhbridges.com

+86 13655282755

Contact Now

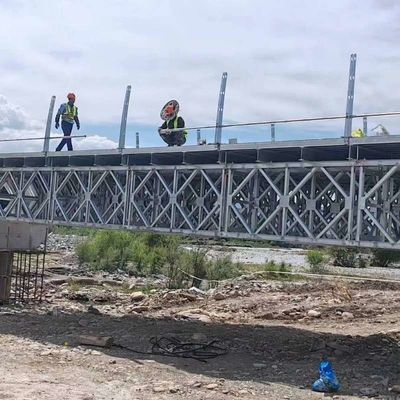

Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design

MOQ:	1 Pcs
Price:	USD 95-450
Standard Packaging:	Naked
Delivery Period:	8-10 work days
Payment Method:	L/C,D/P,T/T
Supply Capacity:	60000ton/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Zhonghai Bailey Bridge

Certification

IS09001, CE

Model Number

CB200/CB321

Modular Design:

Design Life:

50-100 Years

Origin:

China

Dimensions:

Standard

Modular:

Bailey Truss

Structure Type:

Compact Panel Bridge

Reliability:

High Structural Reliability

Product Capability:

60000 Pieces Per Year

Standard:

ASTM,GB,BS,BV

Grade:

Q355B

Highlight:

prefabricated steel truss bridge modular

compact prefabricated steel truss bridge

compact prefabricated steel truss pedestrian bridge

Product Description

Permanent Assembly Steel Truss Bridge/prefabricated Steel Truss Bridge

Jiangsu Zhonghai Bridge Equipment Co., Ltd. is a leading modern enterprise specializing in the design, manufacture, and installation of bridge equipment. Established in 2014, the company is located in the Dantu High-tech Park of Zhenjiang City, Jiangsu Province. With a registered capital of 55 million yuan, it has an annual production capacity of over 60,000 tons. The company is committed to technological innovation and quality excellence, having obtained ISO9001:2015 certification and multiple patents. Its core product, the Bailey bridge, is widely used in infrastructure construction, emergency response, and defense projects. The company also exports its products to over 20 countries, adhering to international standards such as American and European specifications.

Specifications:

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
