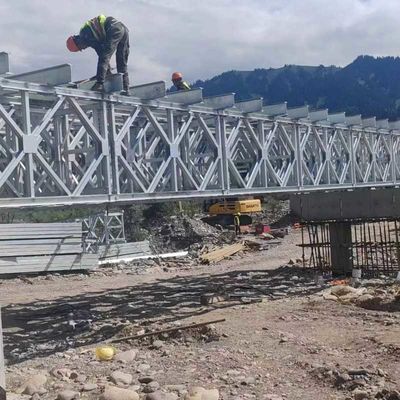

Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m

Products

Panel Bridge

admin@zhbridges.com

+86 13655282755

Contact Now

Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m

MOQ:	1 Pcs
Price:	USD 95-450
Standard Packaging:	Naked
Delivery Period:	8-10 work days
Payment Method:	L/C,D/P,T/T
Supply Capacity:	60000ton/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Zhonghai Bailey Bridge

Certification

IS09001, CE

Model Number

CB200/CB321

Specialized

Durable:

Structure Type:

Steel Truss Bridge

Lane:

Single Lane 4.2m，Double Lane 7.35m

Net Width:

3.15m,3.6m,4.2m,7.35m,10.5m

Grade:

Q355B

Color:

According To Detailed Order

Product Capability:

60000 Pieces Per Year

Standard:

ASTM,GB,BS,BV

Highlight:

customized steel truss bridge

customized prefabricated truss bridge

steel prefabricated truss bridge

Product Description

Steel Bridge/customized Steel Structure Bridge

The products of Jiangsu Zhonghai Bridge Equipment Co., Ltd. are renowned for their high quality and innovative design. The company specializes in manufacturing Bailey bridges, including the 200-type and 321-type, which are known for their durability, ease of assembly, and adaptability to various terrains. These bridges are designed to withstand harsh environments and heavy loads, ensuring long-term reliability. Additionally, the company offers customized bridge solutions tailored to specific client needs, further enhancing the versatility and applicability of its products.

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
