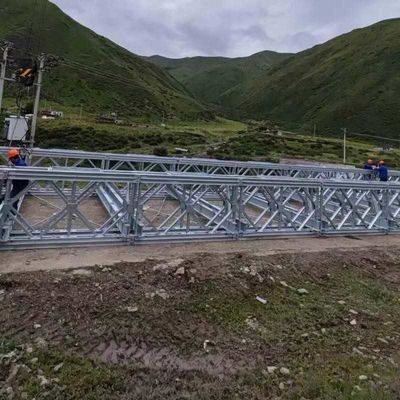

Steel Structure Pre Manufactured Pedestrian Bridges / Prefabricated Truss Bridge

Products

Panel Bridge

admin@zhbridges.com

+86 13655282755

Contact Now

Steel Structure Pre Manufactured Pedestrian Bridges / Prefabricated Truss Bridge

MOQ:	1 Pcs
Price:	USD 95-450
Standard Packaging:	Naked
Delivery Period:	8-10 work days
Payment Method:	L/C,D/P,T/T
Supply Capacity:	60000ton/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Zhonghai Bailey Bridge

Certification

IS09001, CE

Model Number

CB200/CB321

Product Capability:

60000 Pieces Per Year

Standard:

ASTM,GB,BS,BV

Structure Type:

Truss Bridge

Modular Design:

Weather Resistance:

Maintenance Requirements:

Surface Finishing:

Galvanized Finish

Name:

Bailey Bridge

Grade:

Q355B

Highlight:

bs prefabricated truss bridge

bv prefabricated truss bridge

bs pre manufactured pedestrian bridges

Product Description

Steel Structure Bridge Manufacture/steel Structure Bridges Supplier

Inspecting Bailey bridges for algae growth should be conducted regularly to prevent potential issues. Based on maintenance guidelines and practices, it is recommended to inspect for algae growth at least twice a year. This frequency can be adjusted depending on the specific environmental conditions:

1. **Humid or Coastal Areas**:

In regions with high humidity or proximity to water bodies, where algae growth is more likely, inspections should be conducted more frequently, potentially every three to four months.

2. **Routine Cleaning and Inspection**:

During routine maintenance, which includes cleaning the bridge deck, substructure, and steel surfaces, it is important to check for signs of algae or moss. This helps in early detection and removal.

3. **Environmental Considerations**:

If the bridge is located in an area with significant environmental concerns, such as near sensitive habitats or water bodies, more frequent inspections may be necessary to comply with environmental regulations.

By following these inspection frequencies, you can effectively manage algae growth and ensure the longevity and safety of the bridge.

Specifications:

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
