Steel Structure Bridge Steel Wire Rope Bridge Hot Dip Galvanized

MOQ:	1 Pcs
Price:	USD 95-450
Standard Packaging:	Naked
Delivery Period:	8-10 work days
Payment Method:	L/C,D/P,T/T
Supply Capacity:	60000ton/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Zhonghai Bailey Bridge

Certification

IS09001, CE

Model Number

CB200/CB321

Dimensions:

Standard Or Customized

Qualification:

ISO Or Similar

Standard:

ASTM,GB,BS,BV

Type:

Truss Bridge

Bolts Grade:

Lane:

Single Lane 3.15m~4.2m，Double Lane 7.35m

Secondary Steel:

Application:

Bailey Bridge

Surface Protection:

Hot-dip Galvanized

Highlight:

wire rope bridge hot dip

galvanized truss bridge

galvanized wire rope bridge

Product Description

Steel Structure Bridge For Sale/steel Wire Rope Bridge

Jiangsu Zhonghai Bridge Equipment Co., Ltd. is a leading manufacturer of high-quality bridge equipment, renowned for its commitment to innovation and excellence. Established in 2014, the company has quickly become a key player in the industry, with a focus on prefabricated highway steel bridges and Bailey bridges. Located in Dantu District, Zhenjiang City, our strategic location allows us to efficiently serve both domestic and international markets. We prioritize durability and sustainability, utilizing advanced manufacturing techniques such as automatic welding and high-quality galvanized steel to ensure our products meet the highest standards. With a strong emphasis on R&D, we hold numerous patents and certifications, including ISO 9001:2015. Our dedication to customer satisfaction is reflected in our comprehensive after-sales service and commitment to environmental responsibility.

Specifications:

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity

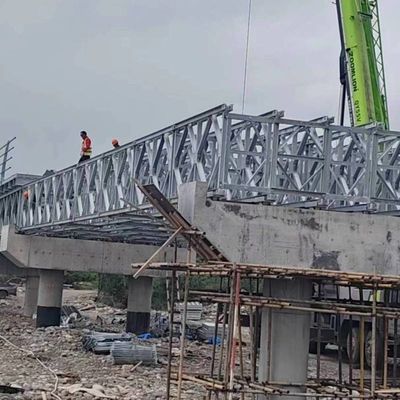

Steel Structure Bridge Steel Wire Rope Bridge Hot Dip Galvanized 12
