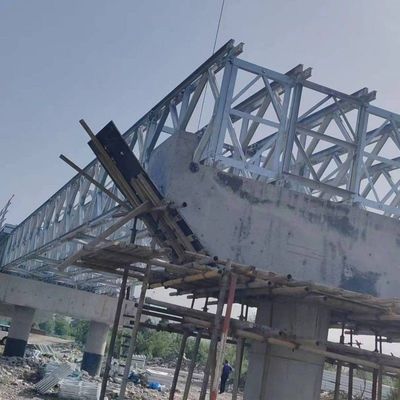

Bailey Bridge Portable Steel Bridge / Steel Truss Bridge For Sale

MOQ: 1 Pcs
Price: USD 95-450
Standard Packaging: Naked
Delivery Period: 8-10 work days
Payment Method: L/C,D/P,T/T
Supply Capacity: 60000ton/year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Zhonghai Bailey Bridge
Certification
IS09001, CE
Model Number
CB200/CB321
Grade:
Q355B
Packing:
Packing In Containers Or Bulk
Standard:
ASTM,GB,BS,BV
Product Capability:
60000 Pieces Per Year
Design:
Varies Depending On Location And Purpose
Surface Finish:
Painted Or Galvanized
Lifespan:
Typically 50-100 Years
Panel Height:
1.5m ,2.134m
Highlight:

bs bailey bridge

,

bv bailey bridge

,

bs steel truss bridge

Product Description

Ailey Bridge Portable Steel Bridge/steel Truss Bridge For Sale



In China, the technology of Bailey bridges has seen significant development and widespread application. Initially introduced for military use in the 1950s, Bailey bridges have since evolved to serve various civilian purposes. These bridges are now extensively used in emergency rescue operations, traffic engineering, municipal water conservancy projects, and the reinforcement of dilapidated bridges. For instance, during the 2008 Wenchuan earthquake, Bailey bridges played a crucial role in disaster relief efforts, facilitating the transportation of supplies, evacuation of injured people, and the movement of rescue teams.

The design and manufacturing of Bailey bridges in China have also advanced. The country has standardized the production of these bridges, with models like the "321" Bailey bridge being widely produced and used since 1965. Additionally, Chinese companies have developed new types of Bailey bridges, such as the HD200 model, which offers enhanced load-bearing capacity and adaptability to different terrains and environments. These innovations have not only improved the functionality and durability of Bailey bridges but also expanded their application scope in both domestic and international markets.



Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity


Bailey Bridge Portable Steel Bridge / Steel Truss Bridge For Sale 12
