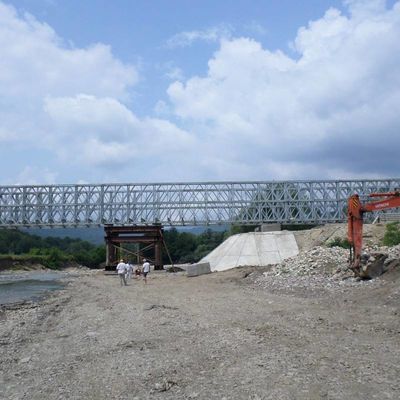

Steel Structure Galvanized Modular Steel Bridge Pre Fabricated 4.2m/3.2m Width

Steel Structure Galvanized/pre Fabricated Steel Bridge

Bailey bridges can indeed be used in residential areas, although their application is typically more common in temporary or emergency situations. Here are some scenarios where Bailey bridges might be suitable for residential areas:

1. **Temporary Traffic Solutions**: Bailey bridges can be quickly assembled to provide temporary road crossings during construction projects or when existing bridges are under repair. This helps maintain traffic flow and access to residential areas without the need for lengthy construction times.

2. **Emergency Situations**: In the event of natural disasters such as floods or earthquakes, where existing infrastructure may be damaged, Bailey bridges can be rapidly deployed to restore access to residential areas. Their modular design allows for quick setup and dismantling, making them ideal for emergency response.

3. **Remote or Rural Areas**: In remote or rural residential areas where traditional bridge construction may be impractical or too costly, Bailey bridges can serve as a cost-effective and durable solution. They can provide essential access to communities that might otherwise be isolated.

4. **Infrastructure Development**: During the development of new residential areas, Bailey bridges can be used as temporary structures to facilitate the movement of construction vehicles and materials. Once the permanent infrastructure is in place, the Bailey bridge can be dismantled and reused elsewhere.

Considerations for Residential Use
- **Load Capacity**: Bailey bridges are designed to handle significant loads, including heavy vehicles, making them suitable for residential roads.
- **Durability**: Made from high-strength steel, Bailey bridges are durable and can withstand various weather conditions, ensuring long-term reliability.
- **Cost-Effectiveness**: Compared to traditional bridges, Bailey bridges require fewer materials and less labor, reducing overall costs. This makes them an economical solution for temporary or semi-permanent use in residential areas.
- **Regulations and Permits**: When considering the use of Bailey bridges in residential areas, local regulations and permits must be obtained. These may vary depending on the region and specific application.

In summary, Bailey bridges can be effectively used in residential areas for temporary or emergency purposes, providing quick and reliable solutions for maintaining access and traffic flow. Their modular design, ease of assembly, and durability make them a versatile option for various residential applications.

Specifications:

​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
