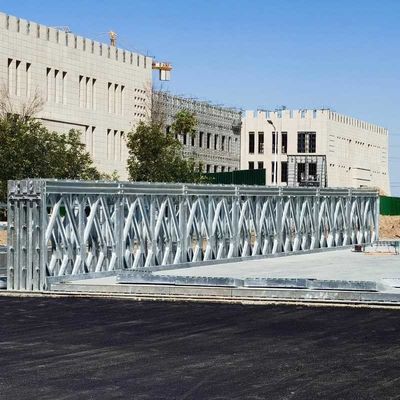

Temporary Steel Bridge For Sale / Construction Steel Structure Prefab Pedestrian Bridge

Temporary Steel Bridge For Sale/construction Steel Structure Pedestrian Bridge

Jiangsu Zhonghai Bridge Equipment Co., Ltd. actively responds to the "Belt and Road" initiative and contributes to global infrastructure construction through technological innovation and high-quality products. The following are the company's main initiatives in responding to the "Belt and Road" initiative:

1. **Participation in international projects**
Following the construction pace of the "Belt and Road", the company has participated in a number of large-scale international projects, including:
- **Maldives China-Maldives Friendship Bridge**: Provided key support for infrastructure construction in the Maldives.
- **Brunei Cross-Sea Bridge**: Assisted Brunei's transportation development.
- **Pakistan Hub Power Station**: Provided high-quality bridge equipment for Pakistan's energy projects.
- **Kenya Nema Railway**: Participated in Kenya's railway construction project.
- **Malaysia East Coast Railway**: Provided technical support for Malaysia's railway construction.

2. **Technological innovation and quality control**
In order to meet the needs of the international market, the company has adopted advanced technology and strict quality control standards:
- **Automatic welding robot technology**: The introduction of automatic welding robot technology ensures that the welding accuracy is controlled within 0.3 mm, which improves product quality and production efficiency.
- **International Standard Testing**: All steel products exported by the company have been professionally tested by SGS to ensure full compliance with American and European standards.
- **Ultrasonic flaw detection**: All major welds have been ultrasonically tested to ensure full compliance with welding standards.

3. **Expanding the international market**
The company actively expands the international market, and its products have been exported to more than 20 countries and regions including Russia, Canada, and Southeast Asia. In 2024, foreign trade business accounted for one-fifth of the company's revenue, and plans to increase to 50% in the future.

4. **Promoting Chinese standards**
The company is committed to promoting "Chinese standards" and making Chinese manufacturing shine on the international stage. By participating in international projects, the company has not only enhanced its international influence, but also made important contributions to the implementation of the "Belt and Road" initiative.

5. **Future Outlook**
Jiangsu Zhonghai Bridge Equipment Co., Ltd. will continue to focus on technological innovation and market expansion to further enhance its leading position in the field of bridge equipment manufacturing. The company plans to apply for provincial-level specialized and new enterprises in the next few years and continue to expand its production scale to meet the growing market demand.

Through these initiatives, Jiangsu Zhonghai Bridge Equipment Co., Ltd. has not only established a good corporate image in the countries along the "Belt and Road", but also provided high-quality products and services for global infrastructure construction.

Specifications:

​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
