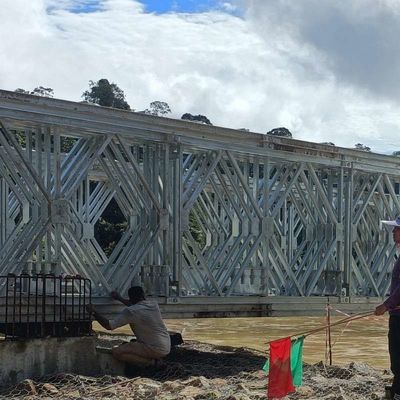

The 450-type Bailey bridge developed by Jiangsu Zhonghai Bridge Equipment Co., Ltd. has significant engineering application advantages and can meet a variety of complex engineering needs:

1. **Long-span bridge construction**
The 450-type Bailey bridge can achieve a large-span single-span structure with a maximum span of up to 91 meters. This large-span capability makes it suitable for crossing natural obstacles such as wide rivers, canyons or deep valleys, and for use as a temporary or permanent bridge in large infrastructure projects.

2. **High-load transportation**
This type of Bailey bridge is designed to carry heavy loads and can meet the needs of various vehicles with a crawler load of 500 kN and a tire load of 300 kN (axle pressure of 130 kN). This makes it have important application value in projects that require the transportation of heavy equipment and materials.

3. **Rapid deployment and temporary use**
The modular design of the 450-type Bailey bridge enables it to be quickly assembled and disassembled, making it suitable for emergency rescue and temporary bridge construction. In natural disasters or emergencies, it can be quickly built to provide transportation guarantees for rescue teams. In addition, it can also be used as a temporary bridge to replace the construction of a permanent bridge to ensure the continuity of traffic.

4. **Strong adaptability**
This type of Bailey bridge can be composed of various types and uses of bridges according to the different spans actually needed, including one-way, two-way, and bridges with external or internal sidewalks. Its strong adaptability enables it to meet the requirements of different terrains and environments, and is suitable for a variety of scenarios such as urban traffic, mountain bridges, and river bridges.

5. **Reuse and economy**
The components of the 450 Bailey bridge can be reused, reducing long-term engineering costs. This economy gives it a significant advantage in projects that require temporary or semi-permanent bridge solutions.

6. **International standard certification**
The new Bailey bridge has simultaneously applied for three sets of standard certifications in China, the United States, and Europe, with the goal of further expanding the global market. This shows that its design and manufacturing meet high international standards and can meet the engineering needs of different countries and regions.

In summary, the Type 450 Bailey Bridge can be widely used in a variety of engineering scenarios with its advantages such as large span, high load, rapid deployment, strong adaptability, economy and international standard certification, providing reliable support for large-scale infrastructure construction, emergency rescue and temporary transportation solutions.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
