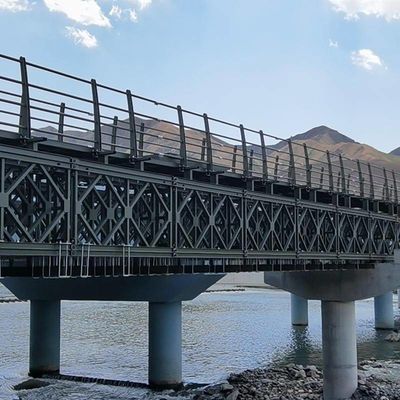

Well Made Standard Steel Panel Bridge Stone Truss Bailey Bridge

Well Made Standard Bailey Bridge/high Quality Stone Bailey Bridge

# Bailey Steel Bridge: An Excellent Choice for Modern Engineering

In the field of modern bridge construction and emergency rescue, Bailey Steel Bridge stands out with its unique advantages and becomes an indispensable and important role. Made of high-strength steel, it has excellent load-bearing capacity and can easily cope with various complex terrains and different load requirements. Whether it is heavy vehicle traffic or large-scale material transportation, it can ensure stability and reliability, providing solid guarantee for smooth traffic.

The modular design of Bailey Steel Bridge is a highlight. Its components are produced in a standardized manner, with uniform size and strong interchangeability. No complex processing is required for on-site installation. It only needs to be assembled according to the design drawings, which greatly shortens the construction period. This efficient assembly method enables Bailey Steel Bridge to be quickly put into use in a short time in emergency situations, such as road rush after natural disasters and rapid construction of military projects, so as to gain valuable time for rescue and security work.

It has strong adaptability and can be flexibly arranged in complex natural environments such as mountains, rivers, wetlands, and narrow spaces in cities. At the same time, Bailey steel bridges are highly reusable, and the disassembled components can be properly preserved and used in subsequent projects, realizing the recycling of resources, reducing long-term use costs, and complying with environmental protection concepts.

In addition, Bailey steel bridges also have good wind resistance and earthquake resistance, which can effectively resist the invasion of natural disasters such as severe weather and earthquakes, ensuring the safety and stability of bridges under extreme conditions. Its surface has undergone special anti-corrosion treatment, strong durability, long service life, and reduced later maintenance costs and frequency.

In short, Bailey steel bridges have shown great application value in the field of bridge construction with their excellent bearing capacity, efficient assembly efficiency, strong environmental adaptability and good durability. It is an indispensable and efficient solution in modern engineering, providing strong support for various traffic needs and emergency rescue tasks, and helping the stable development of society and the convenience and smoothness of people's lives.

Specifications:

​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
